Developer Docs

Open API Documentation

Integrate Turing AI's OpenAPIs into your applications. Access camera lists, live streams, and device controls with secure token-based authentication.

Token Authentication

JSON Responses

RESTful API

Multiple Integrations

Overview

To access Turing AI's OpenAPIs, an access token is required for each API request. These APIs allow you to fetch site lists, camera information, live streams, and control connected devices like PTZ cameras and speakers.

Please contact Turing's support team to enable the third-party integration feature for your organization. Once enabled, you can create access tokens via the Turing Vision portal.

Token-Based Auth

Secure access with bearer token authentication.

JSON Responses

All endpoints return structured JSON data.

RESTful Design

Simple GET and POST requests for all operations.

Create a New Access Token

After enabling the third-party integration feature, an organization admin can create an Access Token:

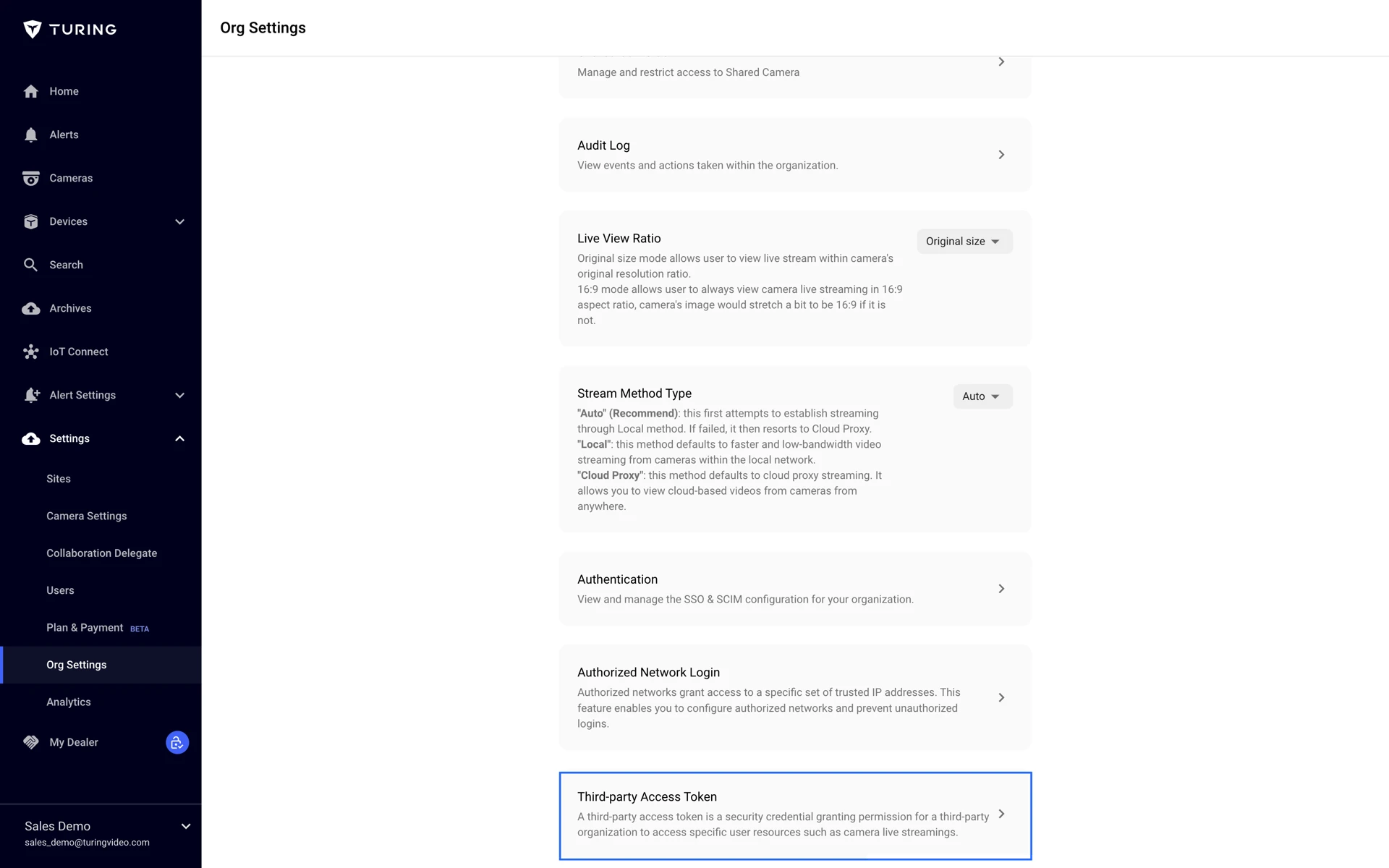

1. Login to Turing Vision Portal
2. Navigate to Settings → Org Settings
3. Select the Third-party Access Token page

For token permission management, you can assign either "Integrator" or "No Access" roles to specific sites. The "Integrator" role grants permissions to fetch camera lists and view live streams via HLS.

Important Security Notice

Store your access token securely — it functions like your user credentials. If compromised, revoke it immediately from the Token Management Page.

Making API Requests

Attach your Access Token in the authorization header as a bearer token:

cURL

curl --location 'https://app.turingvideo.com/openapi/nest/camera/cameras?offset=0' \
--header 'Authorization: Bearer ' \
--header 'Accept: application/json'

Python Example

JSON

import requests

URL = 'https://app.turingvideo.com/openapi'
ACCESS_TOKEN = '<YOUR ACCESS TOKEN>'

def get_camera_list(base_url, access_token):
    headers = {
        'Authorization': f'Bearer {access_token}'
    }
    response = requests.get(
        f'{base_url}/nest/camera/cameras',
        headers=headers
    )
    if response.ok:
        return response.json()
    else:
        response.raise_for_status()

try:
    camera_list = get_camera_list(base_url=URL, access_token=ACCESS_TOKEN)
    print(camera_list)
except Exception as err:
    print(f'An error occurred: {err}')

Get Site List

Returns the array of sites that the access token is authorized to access.

cURL

GET https://app.turingvideo.com/openapi/bw/v2/site/sites/tree

Site Object

Parameter	Type	Description
`id`	integer	Identifier for the site where the camera is installed
`name`	string	Name of site
`type`	string	"site" \| "sub_site"
`children`	array of Site Object	Sub sites of current site

Response

JSON

{
  "err": {
    "ec": 0,
    "em": "This operation is successful.",
    "dm": "ok"
  },
  "ret": {
    "sites": [
      {
        "id": 1777,
        "name": "Demo Site 1 - San Mateo, CA",
        "type": "site",
        "children": [
          {
            "id": 17865,
            "name": "Main Site San Mateo",
            "type": "sub_site",
            "children": [
              {
                "id": 17866,
                "name": "Sub site san mateo",
                "type": "sub_site",
                "children": []
              }
            ]
          },
          {
            "id": 127043,
            "name": "Test",
            "type": "sub_site",
            "children": []
          }
        ]
      },
      {
        "id": 103064,
        "name": "Demo Site 2 - San Jose, CA",
        "type": "site",
        "children": [
          {
            "id": 108994,
            "name": "sjsub1",
            "type": "sub_site",
            "children": []
          }
        ]
      }
    ]
  },
  "ext": null,
  "ebd": null
}

Get Camera List

Fetches the list of cameras available to the authenticated token.

cURL

GET https://app.turingvideo.com/openapi/nest/camera/cameras

Query Parameters

Parameter	Type	Description
`limit`	integer	The maximum number of records to return. Default value: 50, minimum: 0, maximum: 50
`offset`	integer	A starting point for the list of returned records. Default value: 0
`state`	string	"running" \| "offline"
`site_ids`	string	A list of site_id separated by the ","
`camera_ids`	string	A list of camera_id separated by the ","
`manufacturers`	string	"Turing-U" \| "Turing E" — Turing-U: Turing Smart Series, Turing-E: Turing Edge+ Series

Camera Object

Parameter	Type	Description
`org_code`	string	Unique code representing the organization
`site_id`	integer	Identifier for the site where the camera is installed
`id`	integer	Camera unique identifier
`created_at`	time.Time	Timestamp when the camera was created
`updated_at`	time.Time	Timestamp when the camera was last updated
`name`	string	Name of the camera
`state`	string	Status of the camera: "running" \| "offline"
`user_id`	integer	Identifier for the user associated with the camera
`mac_address`	string	MAC address of the camera
`serial_no`	string	Serial number of the camera
`manufacturer`	string	Manufacturer name: Turing-E (Turing Edge Series), Turing-U (Turing Smart Series)
`model`	string	Model of the camera
`license`	object	Camera's active license. Null if the camera does not have any active licenses

License Object

Parameter	Type	Description
`license_plan_name`	string	License plan name: ["CORE AI", "Essential"]
`status`	string	Status of the license

Response

JSON

{
  "err": {
    "ec": 0,
    "em": "This operation is successful.",
    "dm": "ok"
  },
  "ret": {
    "total": 9,
    "offset": 0,
    "limit": 2,
    "cameras": [
      {
        "org_code": "frontend@turingvideo.com",
        "site_id": 1292,
        "site_name": "Demo Site 1",
        "id": 28229,
        "created_at": "2024-03-30T07: 03: 44.430657Z",
        "updated_at": "2024-05-23T20: 30: 51.610764Z",
        "name": "Turing-U-Timelapse",
        "state": "running",
        "user_id": 916,
        "mac_address": "28: 36: 13: 55: 75:0c",
        "serial_no": "210235TRGP3218001526",
        "manufacturer": "Turing-U",
        "model": "TP-MED5M28",
        "licenses": null
      },
      {
        "org_code": "frontend@turingvideo.com",
        "site_id": 100795,
        "site_name": "Demo Site 2",
        "id": 28230,
        "created_at": "2024-03-30T07: 03: 44.64704Z",
        "updated_at": "2024-05-23T20: 30: 49.539604Z",
        "name": "3rd w/o license",
        "state": "running",
        "user_id": 916,
        "mac_address": "e4:f1:4c: 30:4a:2f",
        "serial_no": "210235TL1N320C000030",
        "manufacturer": "—",
        "model": "SC-3245WD-I0-F28M",
        "licenses": {
          "license_plan_name": "CORE AI",
          "status": "active"
        }
      }
    ]
  },
  "ext": null,
  "ebd": null
}

Get Camera HLS Live Stream

Retrieves an HLS stream URL for live video. Requires Core AI license on the camera.

cURL

POST https://app.turingvideo.com/openapi/nest/live/hls

Request Body

Parameter	Type	Description
`camera_id`	integer	Unique identifier for camera
`resolution`	string	Resolution of the stream: "main" \| "sub" \| "third"

JSON

{
  "camera_id": 20364,
  "resolution": "sub"
}

Response

Parameter	Type	Description
`play_url`	string	Camera's HLS URL

JSON

{
  "err": {
    "ec": 0,
    "em": "This operation is successful.",
    "dm": "ok"
  },
  "ret": {
    "play_url": "https://srs.turingvideo.com/live/28311/3e7b2aa38a08988bb399848fe9a1eef9/87513db5db3144c8a26964ad2de48af3.m3u8"
  },
  "ext": null,
  "ebd": null
}

Note: HLS access is exclusively available to cameras with a Core AI license.

The HLS link will expire after 10 minutes. You need to use the token to query for the new one after 10 mins.

When playing the HLS link for the first time, it may take some time to generate the M3U8 segments.

Get Camera RTSP Live Stream

Initiates RTMP protocol streaming push. Requires Core AI license.

cURL

POST https://app.turingvideo.com/openapi/nest/live/push/start

Request Body

Parameter	Type	Description
`protocol`	string	Only support rtmp currently
`camera_id`	integer	Unique identifier for camera
`resolution`	string	Resolution of the stream: "main" \| "sub" \| "third"
`addr`	string	The streaming push address

JSON

{
  "protocol": "rtmp",
  "camera_id": 20364,
  "resolution": "sub",
  "addr": "rtmp://......"
}

Response

JSON

{
  "err": {
    "ec": 0,
    "em": "This operation is successful.",
    "dm": "ok"
  },
  "ret": {
    "play_url": "rtsp://srs.turingvideo.com/live/c191f8089ebe408d916e41531a909537"
  },
  "ext": null,
  "ebd": null
}

Note: Access to the camera's live stream URL is exclusively available to cameras with a Core AI license.

The link will expire after 10 minutes. You need to use the token to query for the new one after 10 mins.

Get Camera Playback

Returns a 10-minute segment of the camera's stream, starting from the specified start_time.

cURL

POST https://app.turingvideo.com/openapi/nest/stream/playback

Request Body

Parameter	Type	Description
`camera_id`	integer	Unique identifier for camera
`resolution`	string	Resolution of the stream: "main" \| "sub" \| "third"
`start_time`	string	The start time for playback in UTC, formatted as "YYYY-mm-dd hh:mm:ss"
`protocol`	string	"hls"

JSON

{
  "camera_id": 28325,
  "start_time": "2024-08-07 19: 55: 00",
  "resolution": "sub",
  "protocol": "hls"
}

Response

Parameter	Type	Description
`play_url`	string	10-minute segment of the camera's stream, starting from the requested start time

JSON

{
  "err": {
    "ec": 0,
    "em": "This operation is successful.",
    "dm": "ok"
  },
  "ret": {
    "play_url": "https://srs.turingvideo.com/live/28325/3e7b2aa38a08988bb399848fe9a1eef9/87513db5db3144c8a26964ad2de48af3.m3u8"
  },
  "ext": null,
  "ebd": null
}

Note: Access to the camera's HLS live stream URL is exclusively available to cameras with a Core AI license.

The HLS link will expire after 10 minutes. You need to use the token to query for the new one after 10 mins.

When playing the HLS link for the first time, it may take some time to generate the M3U8 segments.

PTZ Presets

Get and apply preset positions for PTZ (Pan-Tilt-Zoom) cameras.

Get the PTZ Preset

cURL

GET https://app.turingvideo.com/openapi/nest/cameras/:camera_id/ptz/preset

Param

Parameter	Type	Description
`camera_id`	string	The camera id

Response

JSON

{
  "num": 2,
  "presets": [
    {
      "id": 1,
      "name": "Preset 1"
    },
    {
      "id": 2,
      "name": "Preset 2"
    }
  ]
}

Example

cURL

curl -X GET "https://app.turingvideo.com/openapi/nest/cameras/499/ptz/preset" \
-H "Content-Type: application/json" \
-H "Authorization: Bearer d525150cb4d84e8ba4b515f02f8273819228f5fccdff"

Set PTZ Preset: Currently, the "set PTZ preset" feature is not supported for direct configuration on the Vision platform. It requires logging into the camera's console to set it up. For now, this functionality is not supported via OpenAPI.

Apply the PTZ Preset

cURL

POST https://app.turingvideo.com/openapi/nest/cameras/:camera_id/ptz/preset/:preset_id/apply

Param

Parameter	Type	Description
`camera_id`	string	The camera id
`preset_id`	string	The preset id of the camera

Response

JSON

{
  "err": {
    "ec": 0,
    "em": "This operation is successful.",
    "dm": "ok"
  },
  "ext": null,
  "ebd": null
}

Example

cURL

curl -X GET "https://app.turingvideo.com/openapi/nest/cameras/499/ptz/preset/:preset_id/apply" \
-H "Content-Type: application/json" \
-H "Authorization: Bearer d525150cb4d84e8ba4b515f02f8273819228f5fccdff"

PTZ Control

Send direct pan, tilt, zoom, and other control commands to PTZ cameras.

cURL

POST https://app.turingvideo.com/openapi/nest/cameras/:camera_id/ptz/control

Body

JSON

{
  "cmd": "turn_left",
  "h_speed": 5,  // 1 ~ 9
  "v_speed": 5   // 1 ~ 9
}

Parameter	Type	Description
`cmd`	string	Pan/tilt/zoom/accessory command to execute (see supported commands below)
`h_speed`	integer	Horizontal speed (1–9)
`v_speed`	integer	Vertical speed (1–9)

Supported Commands

turn_left turn_right turn_upper turn_lower turn_left_upper turn_left_lower turn_right_upper turn_right_lower zoom_in zoom_out focus_near focus_far iris_increase iris_decrease wiper_on wiper_off light_on light_off heater_on heater_off ir_on ir_off stop

Response

JSON

{
  "err": {
    "ec": 0,
    "em": "This operation is successful.",
    "dm": "ok"
  },
  "ext": null,
  "ebd": null
}

Example

cURL

curl -X GET "https://app.turingvideo.com/openapi/nest/cameras/499/ptz/control" \
-H "Content-Type: application/json" \
-H "Authorization: Bearer d525150cb4d84e8ba4b515f02f8273819228f5fccdff"

Speaker Audio Management

Manage audio playback on connected speakers and cameras. Supports preset audio clips, custom WAV file uploads, and real-time audio streaming.

Get Audio Clip List For Speaker

cURL

GET https://app.turingvideo.com/openapi/nest/devices/speaker/:device_id/audio/metadata

Response

JSON

{
  "err": {
    "ec": 0,
    "em": "This operation is successful.",
    "dm": "ok"
  },
  "ret": {
    "volume": 20,
    "audio_clip": [
      { "name": "bell1", "index": 0 },
      { "name": "bell2", "index": 1 },
      { "name": "bell3", "index": 2 },
      { "name": "bell4", "index": 3 },
      { "name": "bell5", "index": 4 },
      { "name": "userfile2", "index": 7 },
      { "name": "userfile5", "index": 10 }
    ]
  },
  "ext": null,
  "ebd": null
}

Example

cURL

curl -X GET -H "Content-Type: application/octet-stream" \
-H 'Authorization: Bearer 4b40a1a8c88942a58f934ed0c34579f7c309cc7ada52' \
"https://devgw.turingvideo.com/openapi/nest/devices/speaker/525/audio/metadata"

Play Audio Clip For Speaker

cURL

POST https://app.turingvideo.com/openapi/nest/devices/speaker/:device_id/audio/clip

Query Param

Parameter	Type	Description
`media_id`	integer	The index of the media file
`volume`	integer	The volume to play the audio (0~100)

Response

JSON

{
  "err": {
    "ec": 0,
    "em": "This operation is successful.",
    "dm": "ok"
  },
  "ext": null,
  "ebd": null
}

Example

cURL

curl -X POST \
-H 'Authorization: Bearer d525150cb4d84e8ba4b515f02f8273819228f5fccdff' \
"https://app.turingvideo.com/openapi/nest/devices/speaker/499/audio/clip?media_id=1"

Play Audio File For Speaker

cURL

POST https://app.turingvideo.com/openapi/nest/devices/speaker/:device_id/audio/file

Query Param

Parameter	Type	Description
`file_type`	string	The file suffix of the media file (only support wav file currently)
`volume`	integer	The volume to play the audio (0~100)

Example

cURL

curl -X POST -H "Content-Type: application/octet-stream" \
-H 'Authorization: Bearer d525150cb4d84e8ba4b515f02f8273819228f5fccdff' \
--data-binary @test.wav \
"https://app.turingvideo.com/openapi/nest/devices/speaker/499/audio/file?file_type=wav"

Get Audio Device List

cURL

GET https://app.turingvideo.com/openapi/nest/devices/speaker/list

Get Audio Metadata For Speaker

cURL

GET https://app.turingvideo.com/openapi/nest/devices/speaker/:device_id/audio/metadata

Example

cURL

curl -X GET -H "Content-Type: application/octet-stream" \
-H 'Authorization: Bearer 4b40a1a8c88942a58f934ed0c34579f7c309cc7ada52' \
"https://app.turingvideo.com/openapi/nest/devices/speaker/525/audio/metadata"

Play Audio Stream For Speaker

cURL

POST https://app.turingvideo.com/openapi/nest/devices/speaker/:device_id/audio/stream

Query Param

Parameter	Type	Description
`expire`	integer	The expiration time for the audio push URL (default: 300 seconds)
`volume`	integer	The volume for audio (1–100). If not set, the default speaker volume configuration is used

Example

cURL

curl -X POST -H "Content-Type: application/octet-stream" \
-H 'Authorization: Bearer 4b40a1a8c88942a58f934ed0c34579f7c309cc7ada52' \
"https://app.turingvideo.com/openapi/nest/devices/speaker/525/audio/stream"

Supports the G.711 audio formats PCMU and PCMA.

Upload Audio Clip To Speaker/Camera

cURL

POST https://app.turingvideo.com/openapi/nest/devices/:device_type/:device_id/audio/upload

Body

Parameter	Type	Description
`file_name`	string	The file name of the audio clip file
`device_type`	string	The device type (camera or speaker)
`device_id`	string	The device id
`media_id`	integer	The media id of the audio clip

Example

cURL

curl -X POST -H "Content-Type: application/octet-stream" \
-H 'Authorization: Bearer d525150cb4d84e8ba4b515f02f8273819228f5fccdff' \
--data-binary @alarm.wav \
"https://app.turingvideo.com/openapi/nest/devices/speaker/499/audio/file?file_name=alarm.wav&media_id=0"

Currently, the OpenAPI for audio upload only supports the Turing speaker. Other speakers still need to upload audio through their respective consoles.

The file format supported by OpenAPI uploads is limited to WAV files, with PCM data in one of the following formats:

PCM/uncompressed
ITU G.711 a-law
ITU G.711 µ-law

Supported sample rates: 8K, 16K, 32K, 22.05K, 44.1K, 48K

Bit depth: Signed 16

List Box List

Retrieve all connected boxes (NVR devices) and their current status.

cURL

GET https://app.turingvideo.com/openapi/boxes

Query Parameters

Parameter	Type	Description
`limit`	integer	The maximum number of records to return. Default value: 50, minimum: 0, maximum: 50
`offset`	integer	A starting point for the list of returned records. Default value: 0
`state`	string	"offline" \| "online"
`site_ids`	string	A list of site_id separated by the ","
`box_ids`	string	A list of box_id separated by the ","

Response

JSON

{
  "err": {
    "ec": 0,
    "em": "This operation is successful.",
    "dm": "ok"
  },
  "ret": {
    "total": 3,
    "offset": 0,
    "limit": 50,
    "boxes": [
      {
        "id": "box_cam_v1_000029",
        "created_at": "2022-12-09T02: 18: 46.694433Z",
        "updated_at": "2024-06-05T09: 10: 31.389327Z",
        "state": "offline",
        "site_id": 102736
      },
      {
        "id": "box_cam_v1_000042",
        "created_at": "2024-04-29T18: 38: 00.884591Z",
        "updated_at": "2024-07-18T18: 34: 09.970882Z",
        "state": "online",
        "site_id": 102736
      },
      {
        "id": "box_mini_v2_100013",
        "created_at": "2021-12-13T20: 32: 42.357963Z",
        "updated_at": "2024-07-01T19: 43: 38.754145Z",
        "state": "online",
        "site_id": 102736
      }
    ]
  },
  "ext": null,
  "ebd": null
}

Example (Dev)

cURL

curl --location 'https://dev-gw.turingvideo.com/openapi/boxes' \
--header 'Authorization: Bearer 463f9a2dd9ff4918a7b0f606477896ee143b40f46963' \
--header 'Accept: application/ecmascript'

Webhook

Webhook enables you to subscribe to all event data generated by Turing AI. Once configured, the webhook notification ensures that all AI results detected from camera events are automatically sent to the specified URL.

For more information, visit the Webhook Documentation.

Support & Contact

For more information and API support, contact Turing's support team:

Email Support

support@turingvideo.com

Documentation

turing.ai
