Axis + Turing Outdoor Solution Configuration Guide

Step 1: Choose SiteShield or SolarShield

Both SiteShield and SolarShield offer 4G connectivity,
enabling remote access and live monitoring from anywhere.

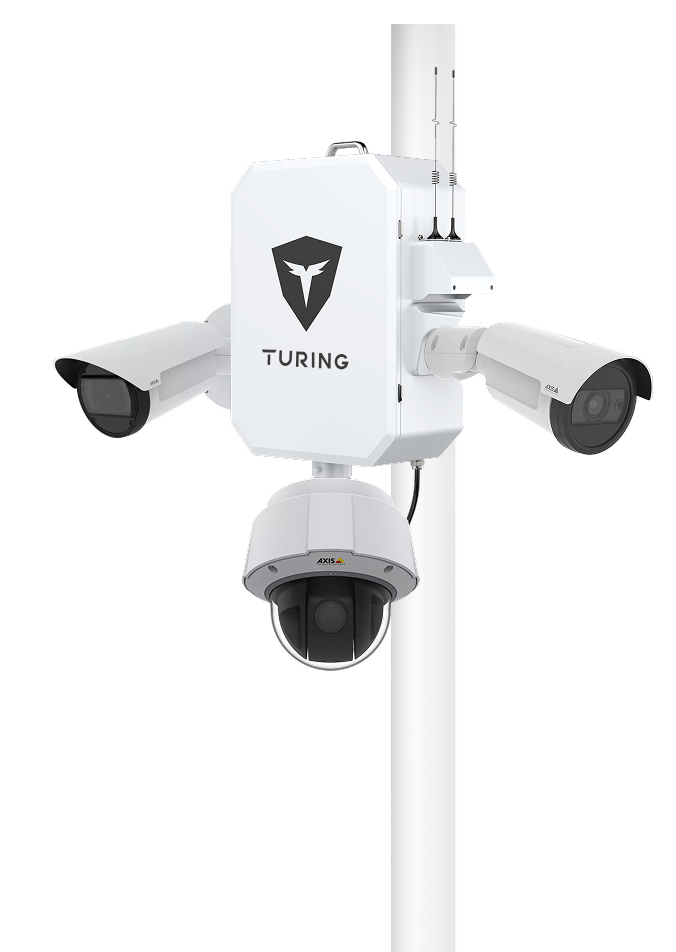

SiteShield is ideal when you have a stable power
source and need multiple cameras for
comprehensive coverage. SiteShield Device

Power Source
Requires stable onsite power
Camera Capacity
Up to 4 Axis standard cameras (via PoE)
Best for
High-traffic, complex sites needing multi-angle coverage
Connectivity
4G cellular connectivity for remote access + live monitoring
Environment Focus
Urban sites, construction zones, or large facilities with complex monitoring needs

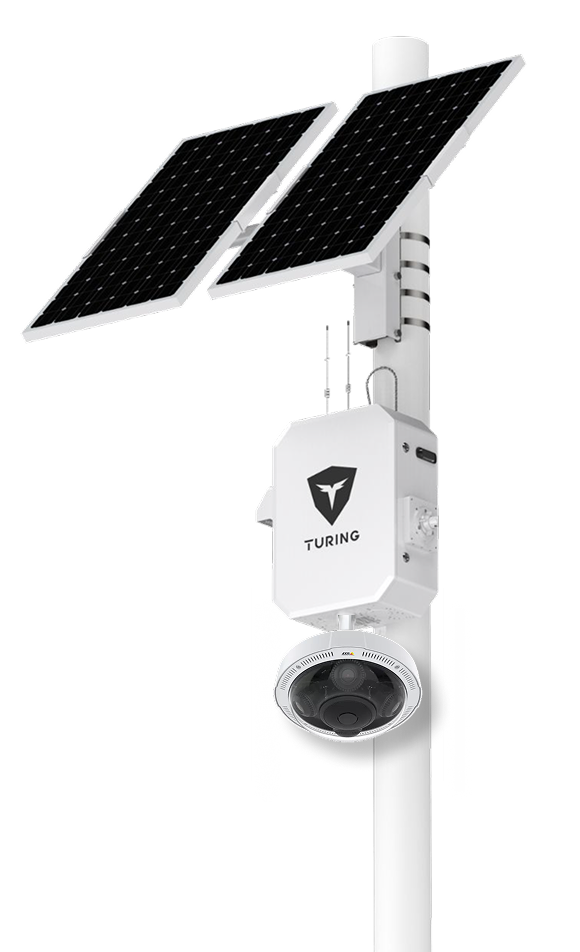

SolarShield is designed for remote locations
where consistent power is
unavailable.

Power Source
Solar-powered + smart battery management for off-grid use
Camera Capacity
Up to 2 standard cameras or 1 specialty camera (PTZ, multisensor, LPR)
Best for
Remote locations with no consistent power
Connectivity
4G cellular connectivity for remote access + live monitoring
Environment Focus
Rural, remote, or temporary sites where power infrastructure is lacking

SiteShield Options

SKU	System Warranty (Exclude Axis Cameras)	Axis Cameras Recommended	Turing ACAI License Included
SS-KG1-B2A-3Y	3 Years Warranty	Up to 2 Channels	2× TV-ACAI-3Y
SS-KG1-B3A-3Y	3 Years Warranty	Up to 3 Channels	3× TV-ACAI-3Y
SS-KG1-B4A-3Y	3 Years Warranty	Up to 4 Channels	4× TV-ACAI-3Y
SS-KG1-B1ALP-3Y	3 Years Warranty	1 LPR Camera	TV-ACAI-PREMLPR1Y

Note: Axis Cameras are not included and must be purchased separately.

SolarShield Options

SKU	System Warranty (Exclude Axis Cameras)	Axis Cameras Recommended	Turing ACAI License Included	Battery	Solar Panels
LS-KG2-ONEMA-3Y	3 Years Warranty	Up to 1 Standard Axis Camera	1× TV-ACAI3Y	1× 12v 26AH Lithium Battery	1× 90W Solar Panel
LS-KG2-B2A-3Y	3 Years Warranty	Up to 2 Standard Axis Cameras or 1 Specialty Camera	2× TV-ACAI3Y	3× 12v 26AH Lithium Batteries	2× 90W Solar Panels
LS-KG2-B4A-3Y	3 Years Warranty	1 Multisensor Camera	4× TV-ACAI3Y	3× 12v 26AH Lithium Batteries	2× 90W Solar Panels
LS-KG2-ONEMALP-3Y	3 Years Warranty	1 P1465 LPR camera	1× TV-ACAI-PREMLPR3Y	2× 12v 26AH Lithium Batteries	2× 90W Solar Panels

Supports up to 2 Standard Axis cameras via PoE (max 15W total camera power consumption).
Specialty cameras (e.g., multisensor) are limited to one per SolarShield unit due to their higher power consumption.

Note: Axis Cameras are not included and must be purchased separately.

Axis Camera & Accessories Selection & Mounting Guide

Certain Axis cameras can be mounted directly onto SiteShield or SolarShield units using supported accessories.
In some cases, additional Axis mounting accessories are required.
Please refer to the Axis camera mounting guide to verify if your selected camera can be installed directly or with assistance.
Ensure mounting kits and brackets are included in your installation plan.

Camera Type	Camera Model	Mounting Options	Axis Accessories Needed	Turing Accessories Needed

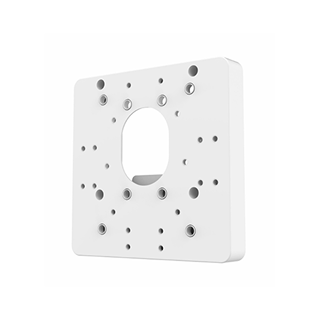

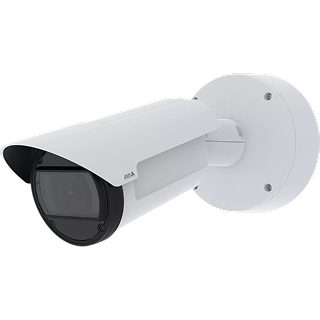

Bullet	AXIS Q18 Series	Side Mount	None	TA-AXSIDEBR

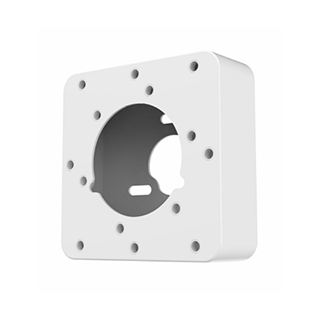

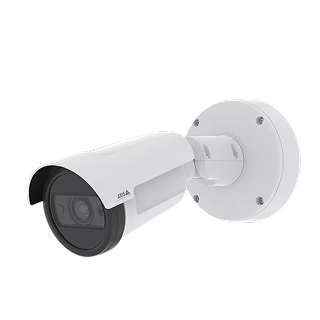

Bullet	AXIS P14 Series	Side Mount, Bottom Mount	None	TA-AXSIDEBR (Side Mount) TA-AXBOTMBR (Bottom Mount)

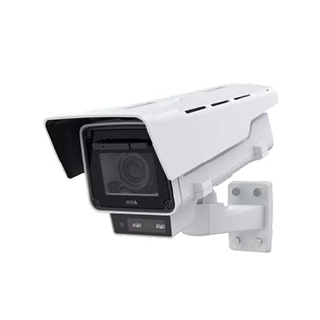

Box	AXIS Q16 Series	Side Mount	TQ1003-E	TA-AXSIDEBR

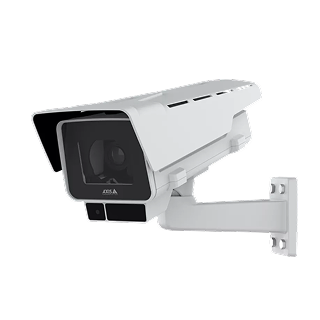

Box	AXIS P13 Series	Side Mount	TQ1003-E	TA-AXSIDEBR

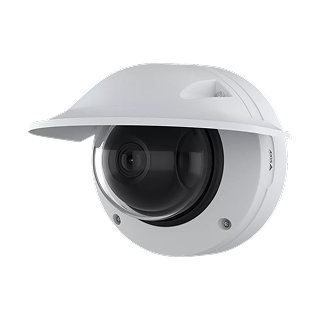

Dome	AXIS Q36 Series	Side Mount	None	TA-AXSIDEBR

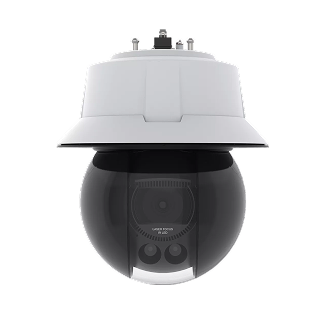

PTZ	AXIS Q60/Q61/Q63 Series	Central Bottom Mount	T94A01D	TA-AXPTZBR

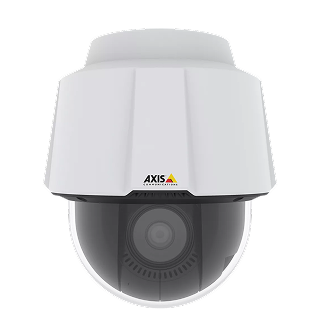

PTZ	AXIS P56 Series	Central Bottom Mount	T94A01D	TA-AXPTZBR

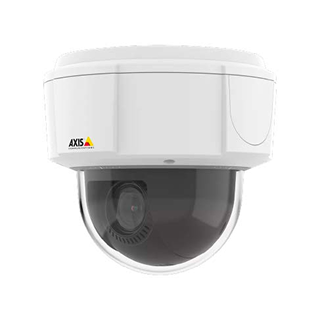

PTZ	AXIS M55 Series	Side Mount	TQ5001-E	TA-AXSIDEBR

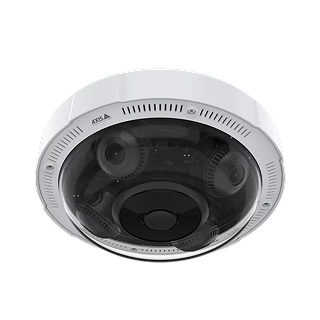

MultiSensor	AXIS P37 Series	Central Bottom Mount	T94N01D	TA-AXPTZBR
